Product family
Rubber Diaphragms
We design and mold custom rubber diaphragms for the toughest pressure, temperature and cycle-life demands. When a diaphragm has to survive millions of cycles without failing, engineers bring us the problem others can’t solve.
Overview
Engineered for millions of cycles
ARC manufactures custom rubber diaphragms in five core configurations — reinforced, pump & valve, rolling, PTFE-coated and metal-bonded — each engineered for the pressure, media and cycle life of its application. We reinforce with Nylon, Dacron, Nomex, Kevlar or cotton fabric, bond to stainless steel, brass and other alloys, and add PTFE facings for chemical and abrasion resistance. Built for extreme pressures and temperatures and long operating life, our diaphragms serve high-frequency pneumatic and hydraulic systems where reliability is non-negotiable — every part custom-to-spec, Made in USA, under ISO 9001:2015 and IATF 16949:2016.
Have a print or a spec in mind? Request a quote →
Capabilities
Custom shapes and configurations molded to your print
Fabric reinforcement in Nylon, Dacron, Nomex, Kevlar and cotton
Metal bonding to stainless, brass and alloys with integral studs, washers, nuts
PTFE facing for chemical inertness and abrasion resistance
Engineered for extreme pressures and temperatures
Designed for high-frequency pneumatic and hydraulic systems
Optimized for long cycle life and reliability
ISO 9001:2015 & IATF 16949:2016 certified, Made in USA
What we make
Diaphragm configurations we build
Fabric-reinforced (Nylon, Dacron, Nomex, Kevlar, cotton) for high-pressure strength and stability.
Custom diaphragms for pumps, valves and flow-control devices with long cycle life.
Convoluted rolling designs for long-stroke, low-friction, high-cycle actuation.

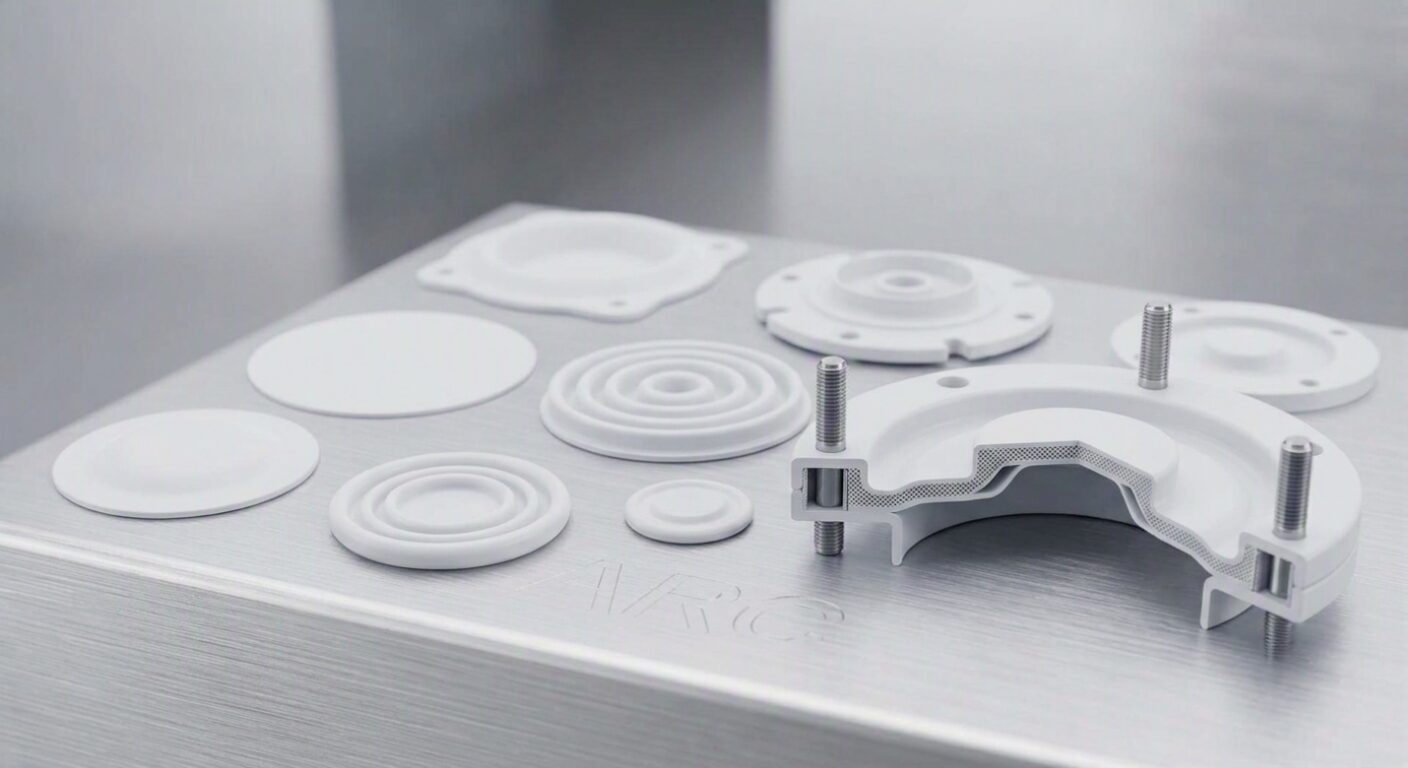

PTFE-faced diaphragms for chemical, abrasion and media resistance.
Bonded to metal inserts — studs, washers, threaded nuts — for direct assembly mounting.
Gallery
Rubber Diaphragms we've built
Materials we mold & extrude
Industries we serve
Where it's used
Typical applications
Need diaphragms to spec?
Send your drawing, sample or service conditions — our engineers confirm the compound, tooling and a path to production.
Custom-Molded Rubber Diaphragms for Flow Control and Sealing
Rubber diaphragms are versatile, flexible sealing components that deliver variable sealing in flow-control applications, making them one of the most valuable elements in any sealing system. As an engineering-led, Made in USA manufacturer with 20 years of experience, American Rubber Corp produces rubber diaphragms to your specification and to your print, using single and composite elastomers matched to the demands of each industry application. Every diaphragm is custom-to-spec, engineered to fit challenging shapes and configurations rather than pulled from a shelf.
Elastomer Compounds and Reinforcement Fabrics
We produce diaphragm seals from a broad range of compound grades, selecting the material to suit your operating pressure, temperature, chemical exposure, and service-life requirements. Where an application calls for added strength and dimensional stability, we integrate reinforcement fabrics into the diaphragm.
- Elastomer compounds: Silicone, EPDM, Butyl, Nitrile (Buna-N or NBR), FKM (a generic compound of Viton, a registered trademark of The Chemours Company), Neoprene/Chloroprene, TPE, and PTFE (a generic compound of Teflon, a registered trademark of The Chemours Company)
- Reinforcement fabrics: Cotton, Polyester, Nylon, Nomex, Dacron, and Kevlar
Engineered to Your Application
Because no two flow-control applications are alike, we manufacture diaphragm seals to fit any challenging shape or configuration your design demands. Our engineers work with your requirements to recommend the right compound grade and reinforcement, then produce diaphragms made-to-print for consistent, repeatable performance across the full production run.
